CNPEEK-G

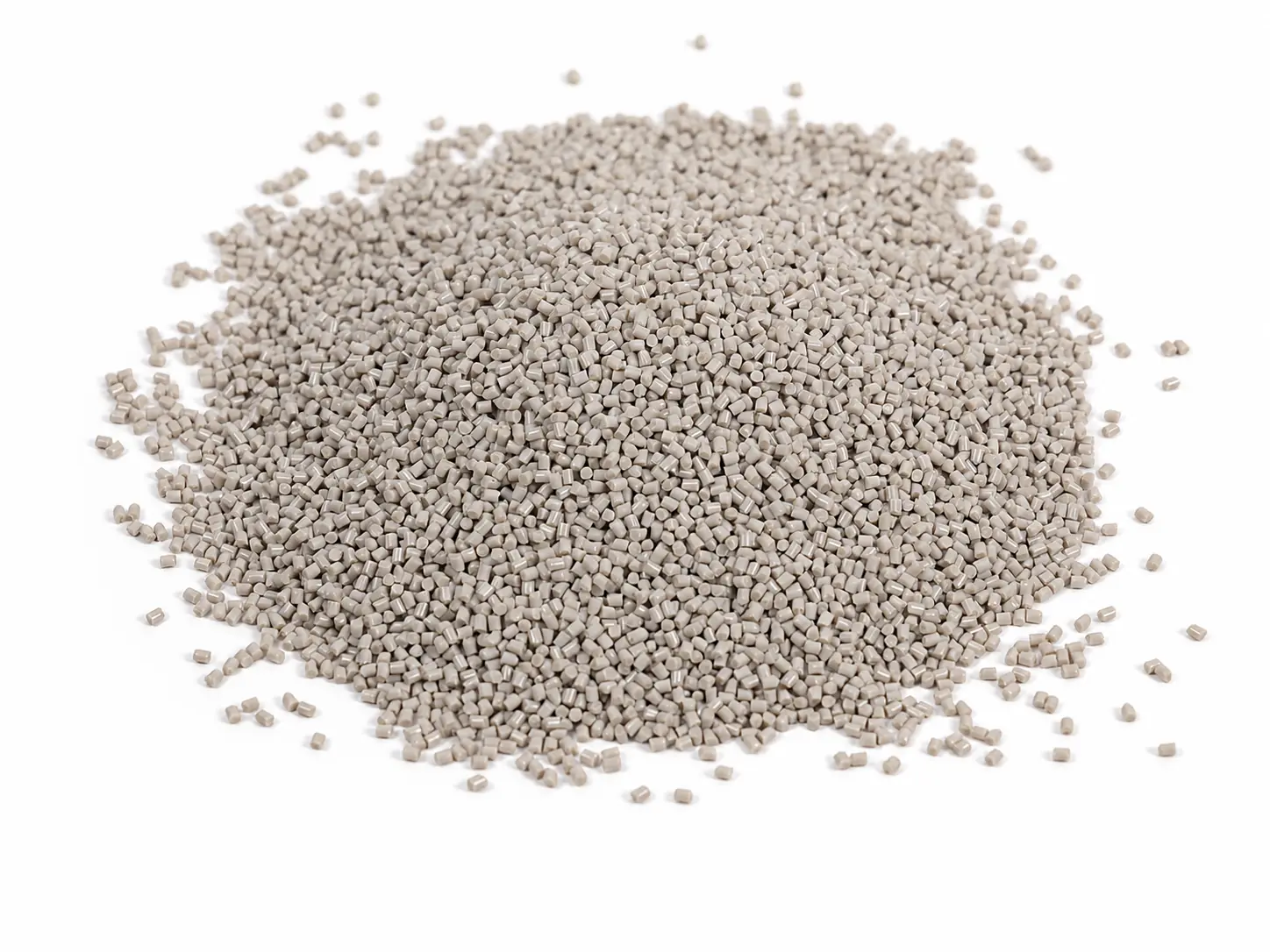

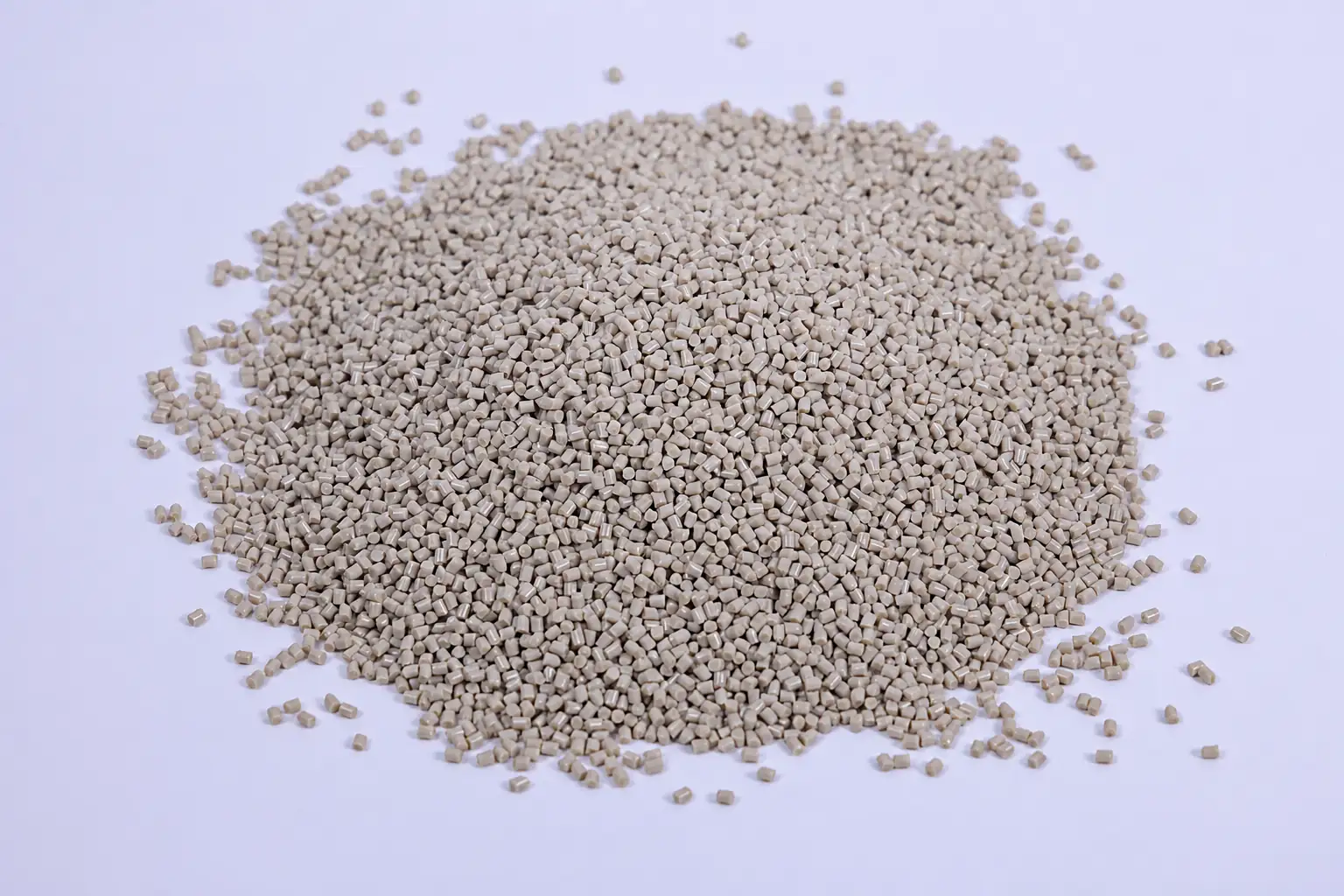

Virgin Resin Pellets
High-purity PEEK pellets with purity above 99%, available in multiple viscosity grades for extrusion, injection and melt processing.
Material FormVirgin Pellets
AppearancePale yellow plastic pellets
Viscosity RangeUltra-High to Low
Grade Count5 Product Grades
Grade Portfolio
Virgin PEEK Pellet Grades
Select viscosity and formulation according to processing method and target performance.
| No. | Grade | Model Name | MFR, g/10 min | Applications & Characteristics |
|---|---|---|---|---|
| 01 | 045G | Ultra-High Viscosity Virgin PEEK Pellets | < 8.00 | Profile extrusion; high temperature, insulation, flame, chemical and wear resistance |
| 02 | 035G | Standard High Viscosity Virgin PEEK Pellets | 8.00–12.00 | Profile extrusion and injection molding |
| 03 | 030G | Standard Medium Viscosity Virgin PEEK Pellets | 15.01–19.00 | Profile extrusion and injection molding |
| 04 | 030G-U | Standard Medium Viscosity Ultra-Virgin PEEK Pellets | 15.01–19.00 | Ultra-filtered wire and cable grade; profile extrusion |
| 05 | 015G | Standard Low Viscosity Virgin PEEK Pellets | 70.01–90.00 | Profile extrusion and injection molding |
Technical Overview
Processing & Product Features
High temperature resistanceHydrolysis resistanceChemical resistanceLow densityElectrical insulationCreep resistanceRadiation resistanceSelf-lubricatingHigh mechanical strengthFlame retardancyLow smoke emissionFatigue resistanceDimensional stabilityBiocompatibility
Drying150°C / 2 hours
Barrel zonesRear 360°C · Middle 365°C · Front 370°C
Nozzle380°C
Mold180–200°C
Need a grade recommendation?
Share your application, processing method and performance targets with our technical team.
Supplier: Jilin Jufeng Advanced Materials Co., Ltd. · CNPEEK® product series
